| Standards | nfe 49004 | ||
| Stroke | 10 mm | ||
| Cushioning | elastic cushioning | ||
| environmental requirements | industry standard, atex optional | ||
| scraper | standard industrial scraper | ||
| retracting piston force | 148 n | ||
| min. ambient temperature | -20 °c | ||
| working pressure min. | 1 bar | ||
| ports | m5 | ||
| stroke max. | 300 mm | ||
| min. medium temperature | -20 °c | ||
| max. particle size | 50 µm | ||
| oil content of compressed air max. | 5 mg/m³ |
| piston Ø | 20 mm | ||

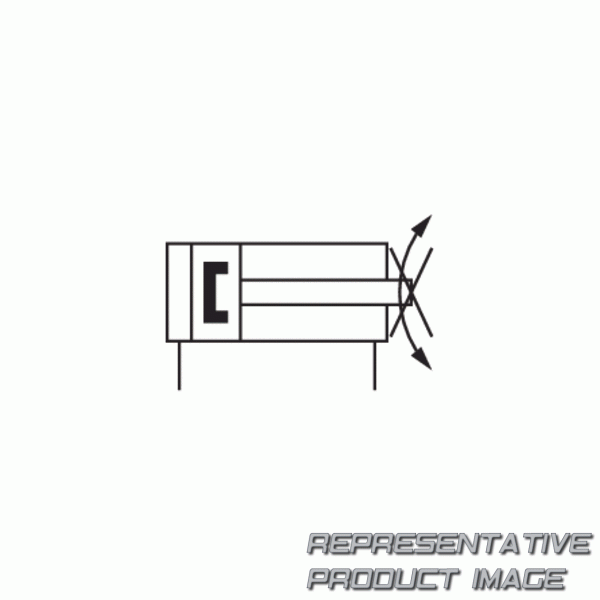

| functional principle | double-acting | ||
| magnetic piston | piston with magnet | ||
| piston rod | non-rotating, with front plate | ||
| pressure for determining piston forces | 6,3 bar | ||
| extracting piston force | 198 n | ||
| max. ambient temperature | 80 °c | ||
| working pressure max | 10 bar | ||
| impact energy | 0.2 j | ||
| Medium | compressed air | ||
| max. medium temperature | 80 °c | ||
| oil content of compressed air min. | 0 mg/m³ |
