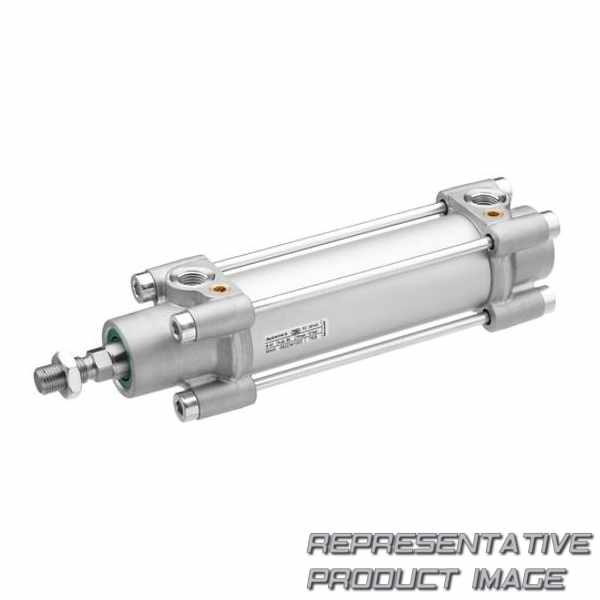

| piston Ø | 32 mm | ||
| functional principle | double-acting | ||
| magnetic piston | piston without magnet | ||
| piston rod | single | ||
| pressure for determining piston forces | 6,3 bar | ||
| extracting piston force | 506 n | ||
| max. ambient temperature | 70 °c | ||
| working pressure max | 10 bar | ||
| Piston rod thread | m10x1,25 | ||
| weight +10 mm stroke | 0.022 kg | ||
| Medium | compressed air | ||
| max. medium temperature | 70 °c | ||
| oil content of compressed air min. | 0 mg/m³ |
| Stroke | 50 mm | ||
| Cushioning | elastic cushioning | ||
| environmental requirements | industry standard, suitable for use in food processing | ||
| scraper | standard industrial scraper | ||
| retracting piston force | 435 n | ||
| min. ambient temperature | -20 °c | ||
| working pressure min. | 2 bar | ||
| ports | g 1/8 | ||
| weight 0 mm stroke | 0.26 kg | ||
| stroke max. | 400 mm | ||
| min. medium temperature | -20 °c | ||
| max. particle size | 50 µm |
