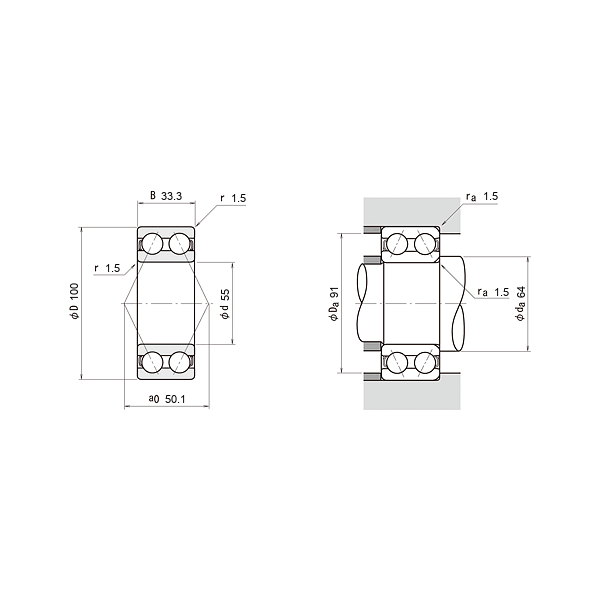

Especificaciones
Ancho | 33,30mm |
---|---|
Diámetro interior | 55mm |
Diámetro exterior | 100mm |
---|---|
Peso | 960g |
Outside diameter | D | 100 | mm |
Basic dynamic load rating, radial | Cr | 61,000 | |
Fatigue load limit, radial | Cur | 3,550 | |
Reference speed | nϑr | 7,200 |
Width | B | 33,30 | mm |
Basic static load rating, radial | C0r | 51,000 | |
Limiting speed | nG | 7,100 | |
Bore diameter | d | 55 | mm |
Minimum diameter shaft shoulder | da min | 64 | mm |
Maximum fillet radius | ra max | 1,50 | mm |
Maximum diameter of housing shoulder | Da max | 91 | mm |
Minimum chamfer dimension | rmin | 1,50 | mm |
Shoulder diameter inner ring | d1 | 71,60 | mm |
Contact angle | α | 30 | ° |
Shoulder diameter outer ring | D1 | 87,80 | mm |
Distance between the apexes of the pressure cones | a | 58,40 | mm |
Fabricante | Referencia |
---|---|
SKF | 3211 A/C3 (SKF) |
