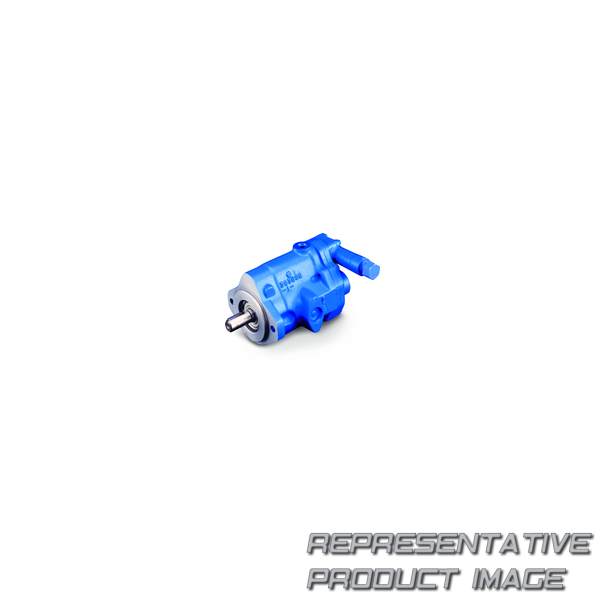

| pumps | aca462314r0a00hb000000ab 30d00000b | ||
| displacement | 46 : 75:28 cm3/r [4.594 in3/r] at 18 deg | ||
| Design type | 3 : series 1 (models 33-64) | ||
| input rotation | r : clockwise (right hand) | ||
| main ports | a : [1.00] - code 61 per sae j518 | ||
| power limiter valve setting port b | 0 : none | ||
| control supply orifice (p) | 0 : none | ||
| control orifice - lower servo (s2) | 0 : none | ||
| press setting for pressure override | 0 : none | ||
| charge pump | a : charge pump with remote pressure filter ports on the -a- port side | ||
| charge pump displacement | 3 : 21:0 cm3/r [1.28 in3/r] | ||
| charge pressure rel valve setting | d : 15 bar [220 lbf/in2] - standard | ||
| special pump assembly features | 00 : no special features | ||
| identification on unit | 0 : standard |
| product series | aca : hydrostatic - heavy duty variable pump | ||
| Type | 2 : variable displacement pump | ||
| input shaft | 14 : 14 tooth 12/24 pitch spline (models 33-64) | ||
| valve plate | 0 : standard (v-groove) | ||
| power limiter valve setting port a | 0 : none | ||
| control | hb : hydraulic remote 1,4-14,1 bar [20-205 lbf/in2] with wide band neutral | ||
| control orifice - upper servo (s1) | 0 : none | ||
| press override | 0 : none | ||
| control special features | 0 : no control special features | ||
| auxiliary mounting | b : sae b-pad; with shaft seal (dry) | ||
| 2nd displacement of dual element | 0 : no dual element | ||
| charge pump special features | 0 : no charge pump special features | ||
| paint and packaging | 0 : painted primer blue (standard) | ||
| design code | b : b |
