| flow rate | 520 l/min (140 gal/min) | ||
| seal material | nitrile | ||
| bypass valve pressure rating | 3.5 bar (50 psi) | ||
| micron rating | 10 µm | ||
| indicator pressure setting | 2.5 bar | ||
| pressure rating | 1000 psi (69 bar) | ||
| Housing Material | aluminum | ||
| maximum operating temperature | 225 f (107 c) | ||
| compatible element | see tech specifications tab after model selected for replacement element part number. | ||

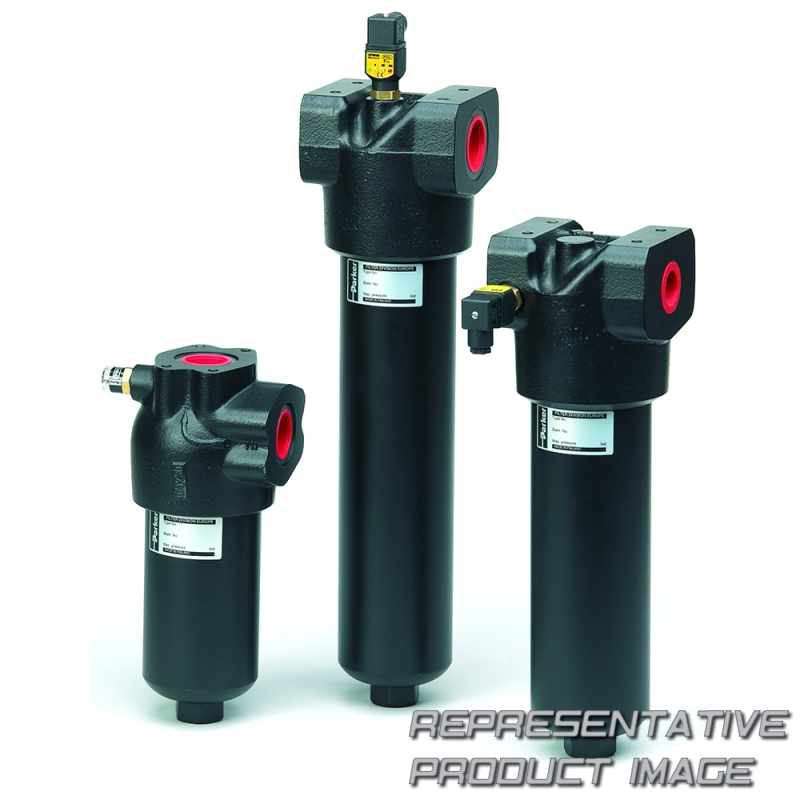

| product type | hydraulic filter |
| filter element type | 10q microglass | ||
| port connection type | sae flange 2" 3000-m | ||
| Options | no drain | ||
| indicator type | visual automatic reset | ||
| mounting style | inline | ||
| port type | sae-12 straight threads, 3/4” npt, sae-16 straight threads, 1” npt, 1-1/2” npt, sae-24 straight threads, flange face, sae 2”, code 6, 2” npt, sae-32 straight threads | ||
| for fluid type | suitable for use with mineral and vegetable oils, and some syntetic oils. for other fluids, please e-mail technical support at hff.technical@support.parker.com or call 800-253-1258. | ||
| Weight | see tech specifications tab after model selected for weight | ||
| product style | hydraulic filter |
