| Material profile | Anodised wrought aluminium alloy | ||
| Mx at theoretical life value of 100 km (only guide consideration) | 2.210 Nm | ||
| Mz at theoretical life value of 100 km (only guide consideration) | 2.063 Nm | ||
| Max. feed force Fx | 1.045 N | ||
| Mass moment of inertia JH per metre of stroke | 0,903 kgcm² | ||
| Max. moment My | 560 Nm | ||
| Material drive cover | Painted die cast aluminium | ||
| Material guide rail | Steel | ||
| Material spindle nut | Steel | ||
| Working stroke | 900 mm | ||
| Stroke reserve | 0 mm | ||
| Spindle diameter | 20 mm | ||
| Mounting position | optional | ||

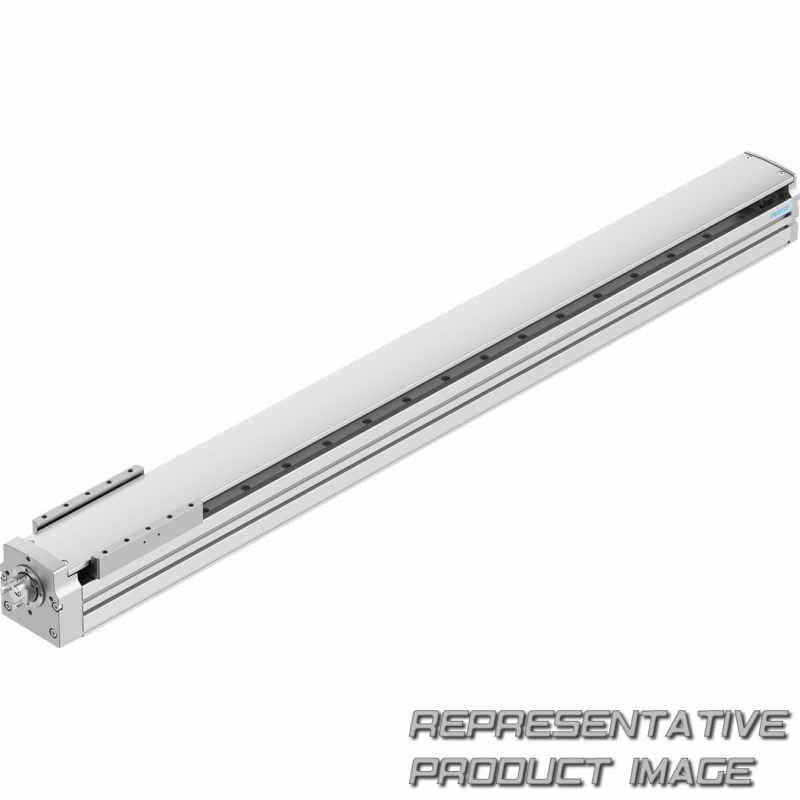

| Design | Electromechanical linear axis With ball screw | ||
| Spindle type | Ball screw | ||
| Variants | Metals with copper, zinc or nickel as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. | ||
| Max. rotational speed | 3.000 rpm | ||
| Repetition accuracy | ±0.02 mm | ||
| LABS (PWIS) conformity | VDMA24364 zone III | ||
| Cleanroom class | Class 8 according to ISO 14644-1 | ||
| Ambient temperature | 0 °C ... 50 °C | ||
| 2nd moment of area Iy | 1.411.000 mm⁴ | ||
| Idle torque at vmax | 0,4 Nm | ||
| Max. force Fy | 9.550 N | ||
| Fy at theoretical life value of 100 km (only guide consideration) | 35.183 N | ||
| Max. moment Mx | 600 Nm | ||
| Mass moment of inertia JO | 0,634 kgcm² | ||
| Moving mass | 3.842 g | ||
| Basic weight for 0 mm stroke | 9.601 g | ||
| Dynamic deflection (moving load) | 0.05% of the axis length, max. 0.5 mm | ||
| Interface code, actuator | T46 |
| Max. moment Mz | 560 Nm | ||
| My at theoretical life value of 100 km (only guide consideration) | 2.063 Nm | ||
| Max. radial force at drive shaft | 290 N | ||
| Torsional mass moment of inertia It | 726.000 mm⁴ | ||
| Material end cap | Painted die cast aluminium | ||
| Note on materials | RoHS-compliant | ||
| Material guide slide | Steel | ||
| Material slide | Anodised wrought aluminium alloy | ||
| Material spindle | Steel | ||
| Size | 160 | ||
| Reversing backlash theoretical | ≤ 0,15 µm | ||
| Spindle pitch | 20 mm/U | ||
| Guide | Recirculating ball bearing guide | ||
| Type of motor | Stepper motor Servo motor | ||
| Symbol | 00991211 | ||
| Max. acceleration | 15 m/s² | ||
| Max. speed | 1 m/s | ||
| Duty cycle | 100% | ||
| Suitability for the production of Li-ion batteries | Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils | ||
| Degree of protection | IP20 | ||
| Continuous feed force | 1.045 N | ||
| 2nd moment of area Iz | 15.257.000 mm⁴ | ||
| Idle torque at vmin | 0,14 Nm | ||
| Max. force Fz | 11.370 N | ||
| Fz at theoretical life value of 100 km (only guide consideration) | 41.887 N | ||
| Mass moment of inertia JL per kg of working load | 0,101 kgcm² | ||
| Feed constant | 20 mm/U | ||
| Product weight | 26.851 g | ||
| Additional weight per 10 mm stroke | 188 g | ||
| Static deflection (load in standstill) | 0.1% of the axis length |
