weight rail (kg) | 2 | ||
carriage build form | d | ||
Accuracy class | g2 | ||
coating | cn | ||
b - carriage width in mm | 70 | ||
c1 - position of center front lube hole | 14 | ||
c4 - position of lateral lube hole | 25,50 | ||
j - carriage height | 47 | ||
l1 - exterior fixing hole spacing | 72 | ||
n - lateral fixing hole spacing | 50 | ||
c0 - static load capacitiy (n) | 128,500 | ||
m0q - static cross moment capacity (nm) | 2,762 | ||
mq - dyn. cross moment capacity (nm) | 1,537 |
type (monorail carriage) | mr | ||
buildsize | 35 | ||
Preload class | v3 | ||
a - system height in mm | 55 | ||
b2 - distance between locating faces | 18 | ||
c3 - position of lateral lube hole | 14 | ||
c7 - position of lateral lube hole | 22,50 | ||
l - carriage length | 143 | ||
l6 - steel body length | 103 | ||
o - reference face height | 8 | ||
c100 - dynamic load capacity (n) | 71,500 | ||
m0l - static longitud. moment capacity (nm | 2,214 | ||
ml - dyn. longitud. moment capacity (nm) | 1,232 |
Stock | 1 uds. |
---|---|

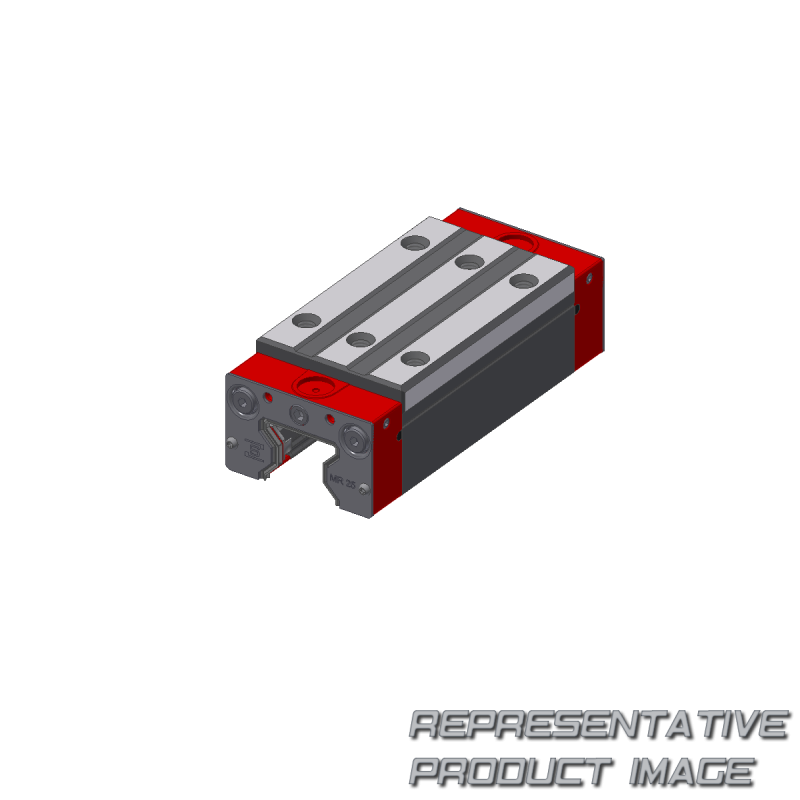

Referencia | MRW35-D-G2-V3-R1-CN-S99-LN |
Fabricante | Schneeberger |
Unidades | Precio / Unidad |
---|---|
1+ | $228,86 |
