R114026013 Bosch Rexroth

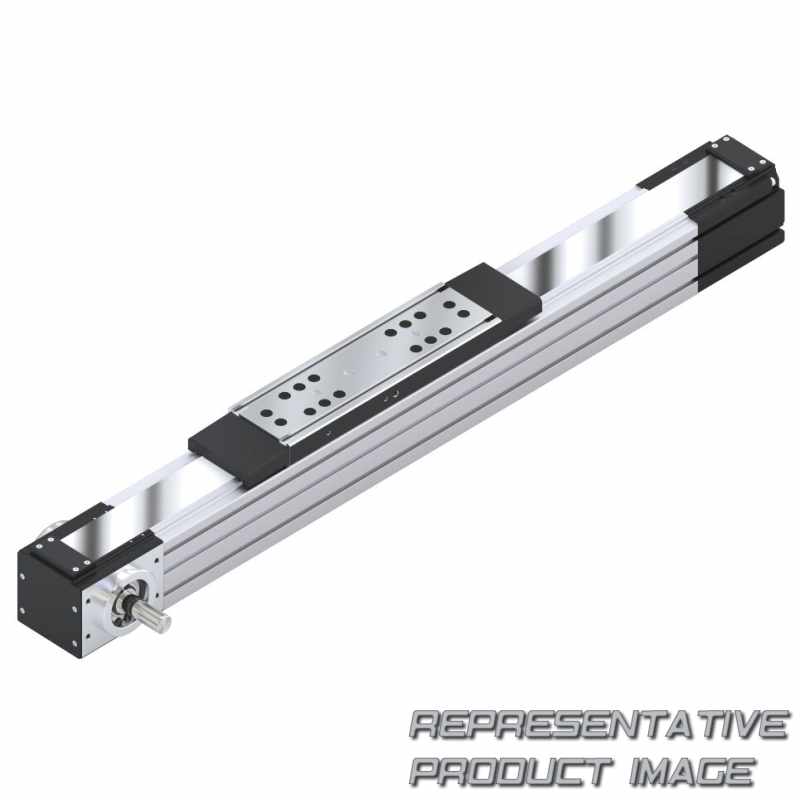

REXROTH R114026013 MODULO LINEAL

MKR-110-NN-3

Stock Limitado solo disponible bajo consulta

Especificaciones

  • Linear Modules with Cam Roller Guide and toothed belt drive
  • The integrated, backlash-free Rexroth Cam Roller Guide is especially suited to very high speeds (up to 10 m/s) thanks to its special construction.
  • The Rexroth cam roller guide features one-point lubrication from both sides; one-point lubrication is only suitable for oil lubrication
  • With planetary gearbox with various gear ratios and versions for optimizing external load to motor inertia.
  • Available in two sizes up to a length of 10,000 mm

Tamaño MKR-110-NN-3
C 46.500 N
ML 2.790 Nm
My max 1.120 Nm
Fy max 18.600 N
Fz2 max 18.600 N
amax 50 m/s²
Mt 666 Nm
Mx max 264 Nm
Mz max 1.120 Nm
Fz1 max 18.600 N
Lmax 9.400 mm
vmax 5 m/s
