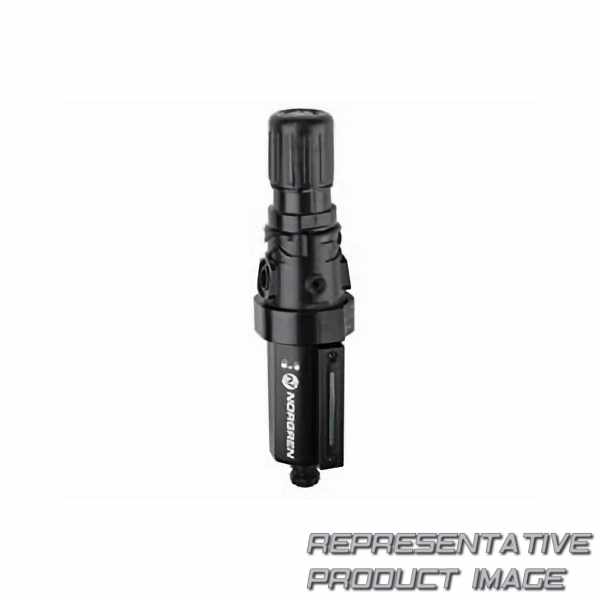

| parts | filter pressure regulator | ||
| port | g 3/4 | ||
| filter porosity | 5 µm | ||
| pressure gauge | with pressure gauge | ||
| working pressure max | 16 bar | ||
| max. ambient temperature | 50 °c | ||
| regulation range max. | 8 bar | ||
| Type | can be assembled into blocks | ||
| mounting orientation | vertical | ||
| regulator function | with relieving air exhaust | ||
| filter element | exchangeable | ||
| max. achievable compressed air class acc. to iso 8573-1:2010 | 6 : 7 : - |
| reservoir | reservoir, polycarbonate, with pa protective guard | ||
| nominal flow qn | 14000 l/min | ||
| Condensate drain | semi-automatic, open without pressure | ||
| working pressure min. | 1.5 bar | ||
| min. ambient temperature | -10 °c | ||
| regulation range min. | 0.5 bar | ||
| lock type | for padlocks | ||
| pressure supply | single | ||
| regulator type | diaphragm-type pressure regulator | ||
| max. internal air consumption | 1.5 l/min | ||
| filter reservoir volume | 87 cm³ | ||
| Medium | compressed air, neutral gases |
