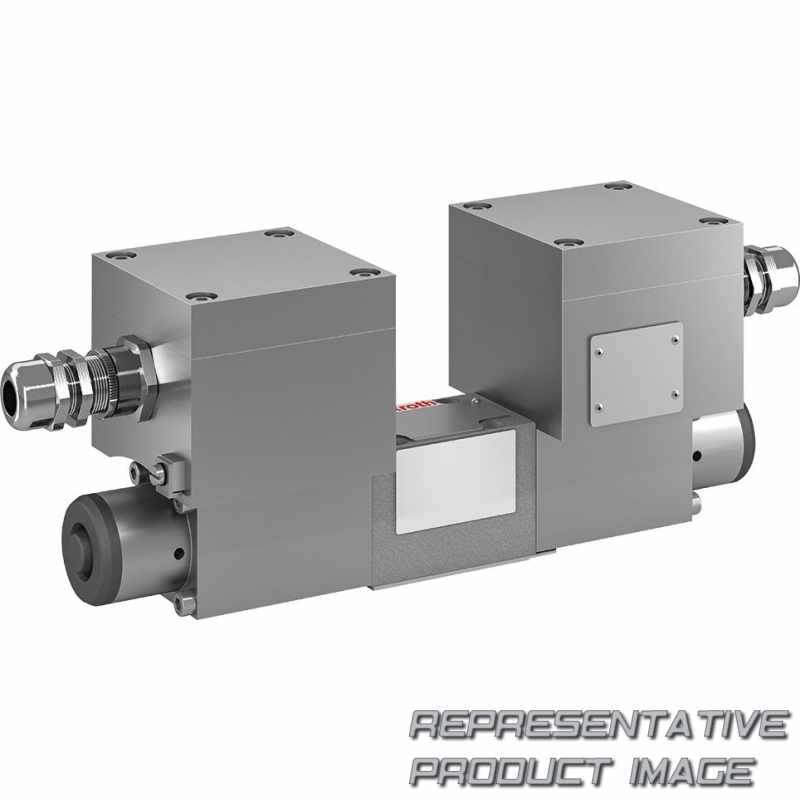

Rexroth R901021443 VALV DIRECCIONAL CORREDERA
4WE6D6X/EG24NXEZ2
$3.367,76
1 uds.
con envío de 1 a 3 días a United States
Especificaciones
- Size 6
- Component series 6X
- Maximum operating pressure 350 bar
- Maximum flow 70 l/min
- Area of application in accordance with the Explosion Protection Directive 2014/34/EU: I M2; II 2G
- Type of protection of the valve solenoids: Ex eb mb IIC T4 Gb according to EN 60079-7 / EN 60079-18
| Main ports (4) | 4 main ports |
|---|---|
| Series (WE) | Directional valve WE |
| Size (6) | Size 6 |
| Symbols (D) | D |
| Component series 60 … 69 (60 … 69: unchanged installation and connection dimensions) (6X) | Component series 60 … 69 (60 … 69: unchanged installation and connection dimensions) |
| Spring return | With spring return |
| Solenoid type (E) | High-power solenoid, wet (wet-pin) |
| Electrical voltages (G24) | G24 |
|---|---|
| Manual override (N) | With manual override |
| Explosion protection (XE) | Increased safety |
| Electrical connection (Z2) | Solenoid with terminal box and cable gland |
| Throttle insert | Without throttle insert |
| Seal Material | NBR seals |
