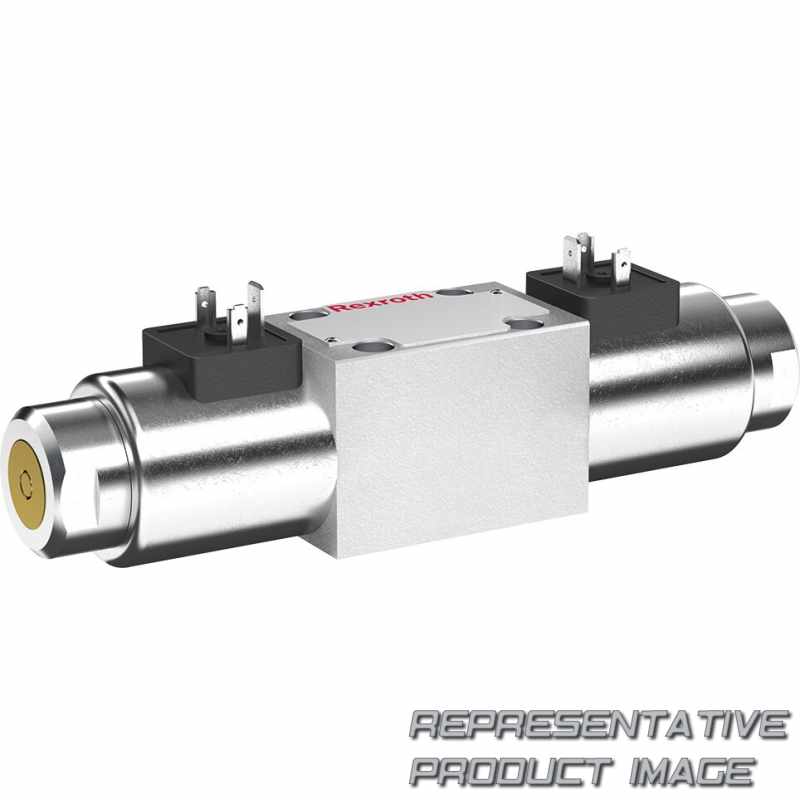

Rexroth R901288540 VALV DIRECCIONAL CORREDERA
4WE6J6X/EG24N9XNK4
$997,22
2 uds.
con envío de 1 a 3 días a United States
Especificaciones
- Size 6
- Component series 6X
- Maximum operating pressure 350 bar
- Maximum flow 80 l/min
- Area of application in accordance with the Explosion Protection Directive 2014/34/EU: II 3G; II 3D
- Area of application according to technical rules EAC TR CU 012/2011: II 3G; II 3D
- Type of protection of the valve solenoids:
– Ex ec IIC T3 Gc according to EN 60079-7
– Ex tc IIIC T140°C Dc according to EN 60079-31
| Main ports (4) | 4 main ports |
|---|---|
| Series (WE) | Directional valve WE |
| Size (6) | Size 6 |
| Symbols (J) | J |
| Component Series (6X) | Component series 60 … 69 (60 … 69: unchanged installation and connection dimensions) |
| Spring return | With spring return |
| Solenoid type (E) | High-power solenoid, wet (wet-pin) with detachable coil |
| Supply and mains voltage (G24) | Direct voltage 24 V |
|---|---|
| Manual override (N9) | With concealed manual override |
| Explosion protection (XN) | Not igniting |
| Electrical connection (K4) | Individual connection: Solenoid without mating connector (plug-in connector according to EN 175301-803, design A) |
| Throttle insert | Without throttle insert (standard) |
| Seal Material | NBR seals |
