| Connection 3 Style | na | ||
| Connection 2 Tube O.D. (mm) | na | ||
| Fitting Material | Steel, Chromium-6 Free | ||
| Connection Size | G 1 A | ||
| Series | Heavy | ||
| Connection 2 Tube Outside Diameter | 06-42 mm | ||
| Optional Accessories | na, Pre-assembled with nut and EO-PSR cutting ring, Pre-assembled with EO-2 functional nut, Pre-assembled with nut and EO-DPR cutting ring | ||
| Maximum Operating Pressure | 16-40 MPa, 160-400 bar, 2321-5802 psi | ||
| Connection Type | Bite Type, Soft Seal Bite Type | ||
| Materials of Construction | Steel zinc plated (CrVI-free), Stainless steel |

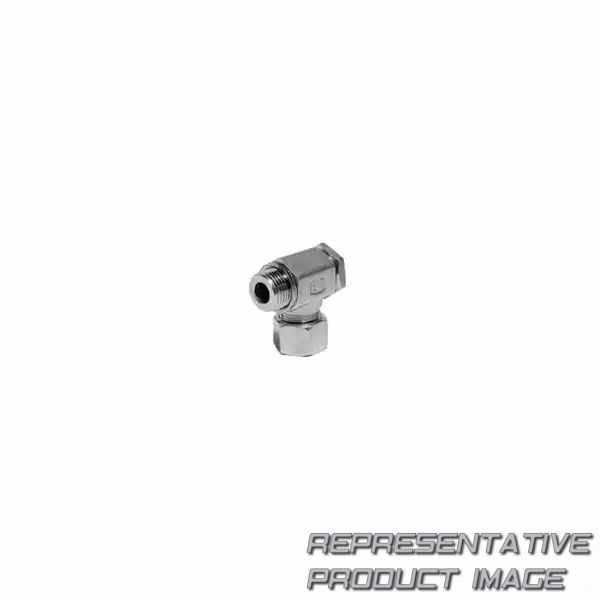

| Shape | BSPP male stud banjo elbow | ||
| Connection 2 Style | BSPP male stud with metal seal ring | ||
| Connection 1 Tube O.D. (mm) | 25 | ||
| Pre-Installed Optional Accessories | Pre-assembled with nut and EO-PSR cutting ring | ||
| Connection 1 Tube Outside Diameter | 06-42 mm | ||
| Connection 3 Size | na, Male BSPP thread with metal sealing ring, Male BSPP thread with soft seal ring, Male metric thread with metal sealing ring, Male metric thread with soft seal ring | ||
| Tube Outside Diameter | 6-42 mm | ||
| Application | Agriculture Equipment, Automotive Process, Chemical Transfer, Construction Equipment, Fuel transfer, Hydraulic, Manufacturing Equipment, Marine, Material Handling, Mobile Equipment, Oilfield, Packaging, Transportation | ||
| Specifications Met | DIN ISO 8434 |
